6/10(12) KV-CV(CE optional) | BCC
Attribute:
6/10(12) KV-CV(CE optional) Bangkok Cable BCC Medium voltage power cable
Core :
Diameter :
Categories : Brand , BCC , Products range , Medium-High Volatage ,
Brand : Bangkok Cable
6/10(12) KV-CV (CE optional) | BCC
CROSSLINKED POLYETHYLENE POWER CABLE Medium voltage power cable
Type : Medium voltage power cable 6/10(12) KV-CV ฉนวน cross-linked polyethylene (XLPE)
Brand : Bangkok Cable (BCC)

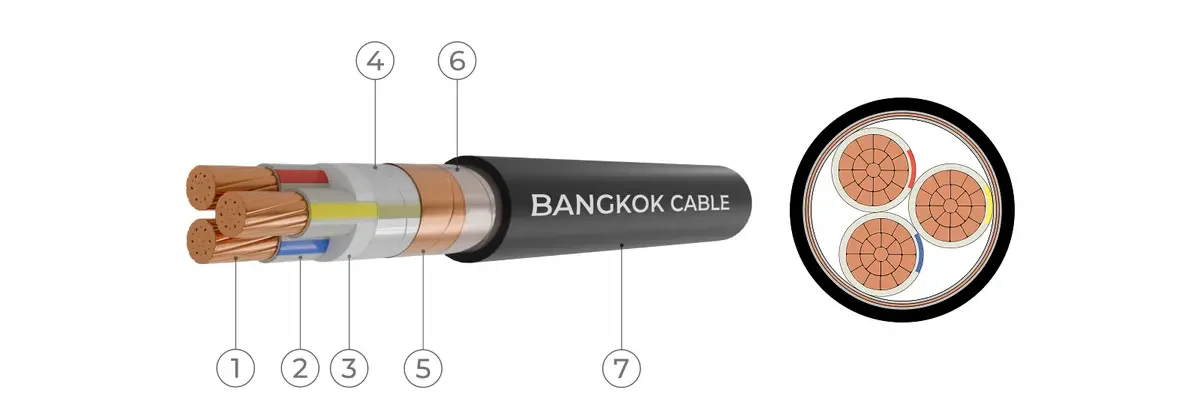

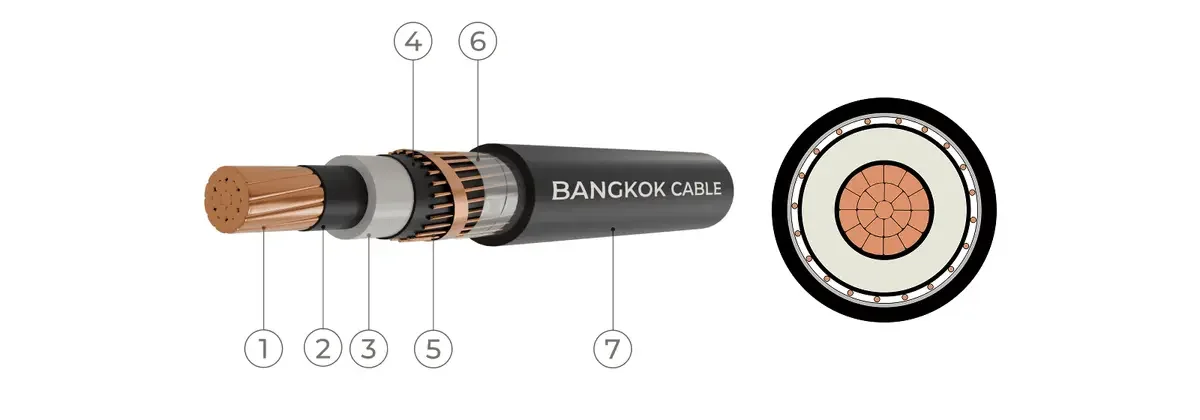

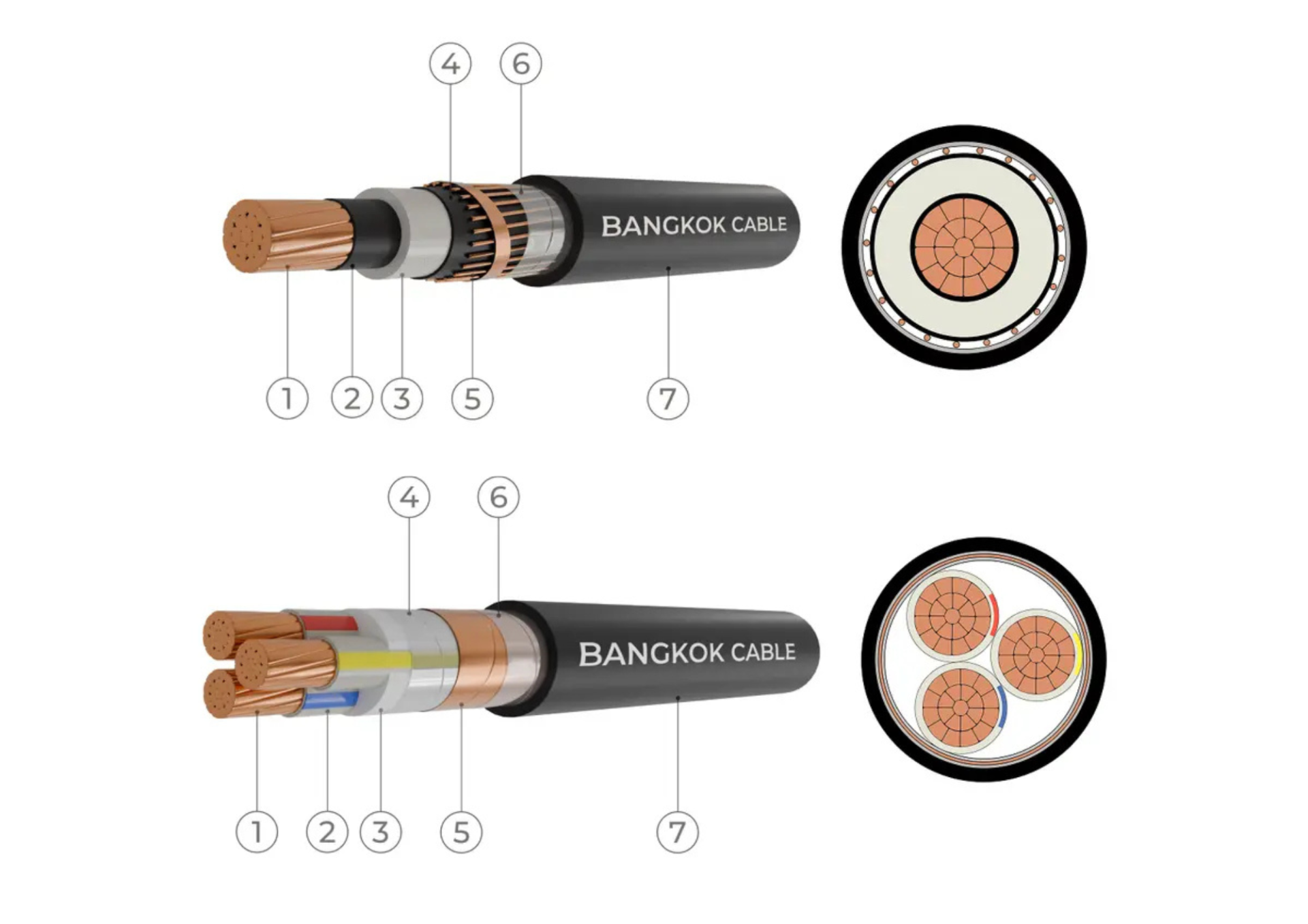

Number of Core : 1 core and 3 core
Conductor : Circular compact stranded annealed copper
Conductor Screen : Semi-conductive cross-linked polyethylene compound
Insulation : Cross-linked polyethylene (XLPE) compound
Insulation Screen : Semi-conductive cross-linked polyethylene compound
Binding tape : Polyester tape
Metallic Screen : Copper wires with copper contact tape
Shealth : Black Polyvinyl chloride (PVC), (Optional: PE)
Classification : Maximum conductor temperature 90°C
Maximum circuit voltage 12 kV
AC testing voltage : 21 kV
Reference : IEC 60502-2
Application : For general purpose power distribution in dry or wet location,
Exposed in aerial, direct burial, conduit, open tray and underground duct intallation
**Prices shown are base prices. Customers can request a discount by these contact channels**
ตารางแสดงราคาตั้ง สายไฟฟ้า (Table of Price List)
| Name and Size (mm²) ชื่อและขนาด (ตร.มม.) | Number of Core จำนวนแกน | |
| 1 Core(Baht/Meter) 1 แกน(บาท/เมตร) | 3 Core(Baht/Meter) 3 แกน(บาท/เมตร) | |
| 6/10(12) KV-CV 10 mm2 | - | - |
| 6/10(12) KV-CV 16 mm2 | 344.40 | 1,066.80 |
| 6/10(12) KV-CV 25 mm2 | 414.40 | 1,300.60 |
| 6/10(12) KV-CV 35 mm2 | 491.40 | 1,542.80 |
| 6/10(12) KV-CV 50 mm2 | 592.20 | 1,867.60 |
| 6/10(12) KV-CV 70 mm2 | 739.20 | 2,346.40 |
| 6/10(12) KV-CV 95 mm2 | 922.60 | 2,942.80 |
| 6/10(12) KV-CV 120 mm2 | 1,104.60 | 3,501.40 |
| 6/10(12) KV-CV 150 mm2 | 1,297.80 | 4,081.00 |
| 6/10(12) KV-CV 185 mm2 | 1,566.60 | 4,963.00 |
| 6/10(12) KV-CV 240 mm2 | 1,999.20 | 6,304.20 |
| 6/10(12) KV-CV 300 mm2 | 2,445.80 | 7,686.00 |
| 6/10(12) KV-CV 400 mm2 | 3,061.80 | 9,585.80 |
| 6/10(12) KV-CV 500 mm2 | - | - |
Products are in the roll of 100 meters
If customers would like to order special length, please contact us by these channels
Tel : 094-325-5151 / 02-8640982-4
Line : @sts7744
Email : sts.thonburi@gmail.com
Facebook : www.facebook.com/ststhonburi
