3.6/6(7.2) KV-CV(CE optional) Bangkok Cable BCC Medium voltage power cable
Core :
Diameter :
Categories : Brand , BCC , Products range , Medium-High Volatage ,
Brand : Bangkok Cable
3.6/6(7.2) KV-CV (CE optional) | BCC
CROSSLINKED POLYETHYLENE POWER CABLE Medium voltage power cable
Type : Medium voltage power cable 3.6/6(7.2) KV-CV ฉนวน cross-linked polyethylene (XLPE)
Brand : Bangkok Cable (BCC)

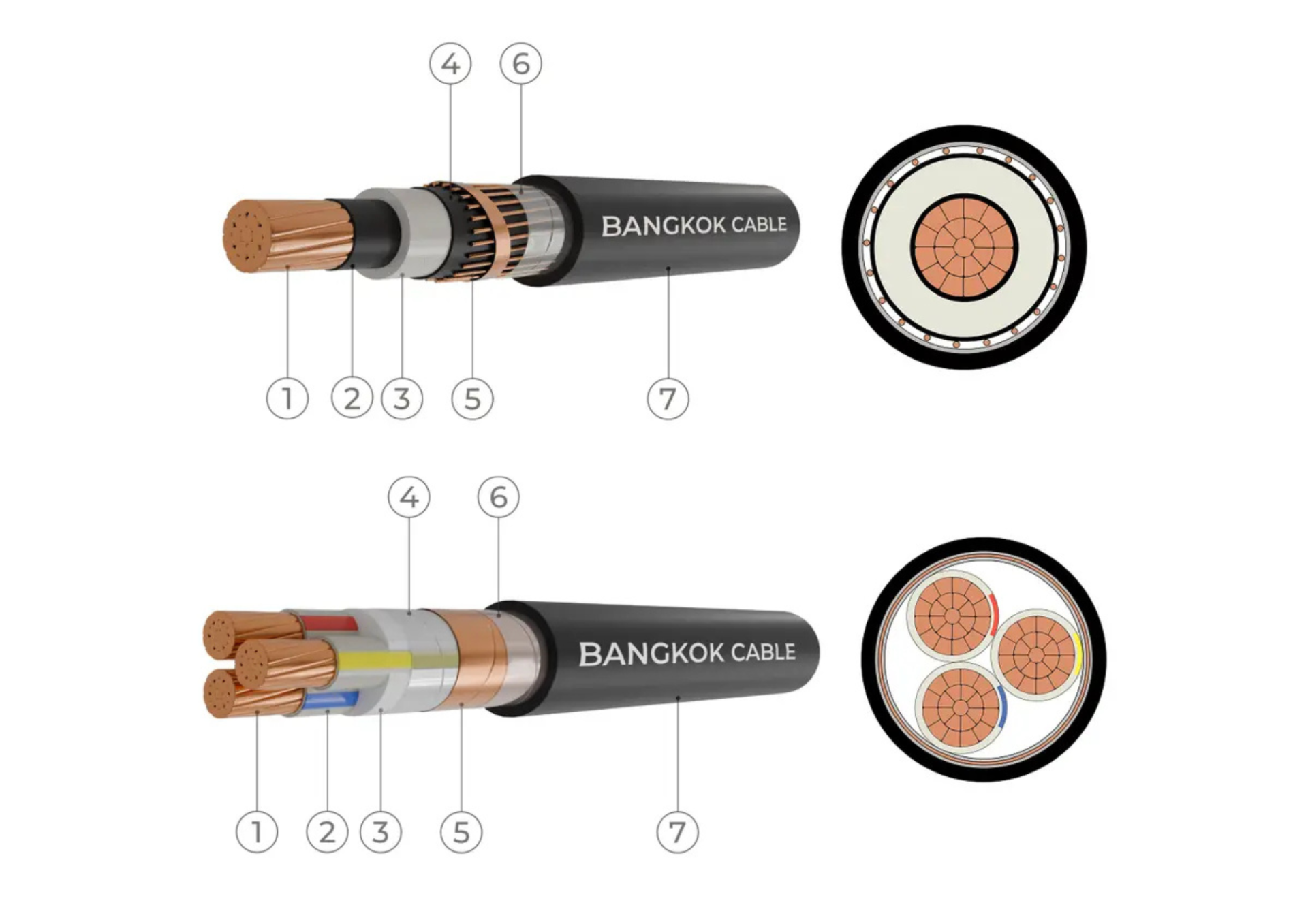

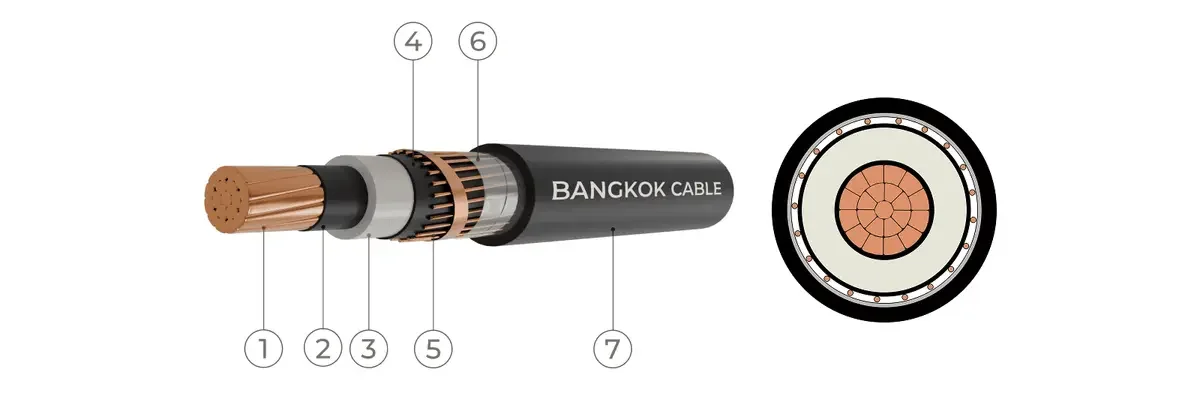

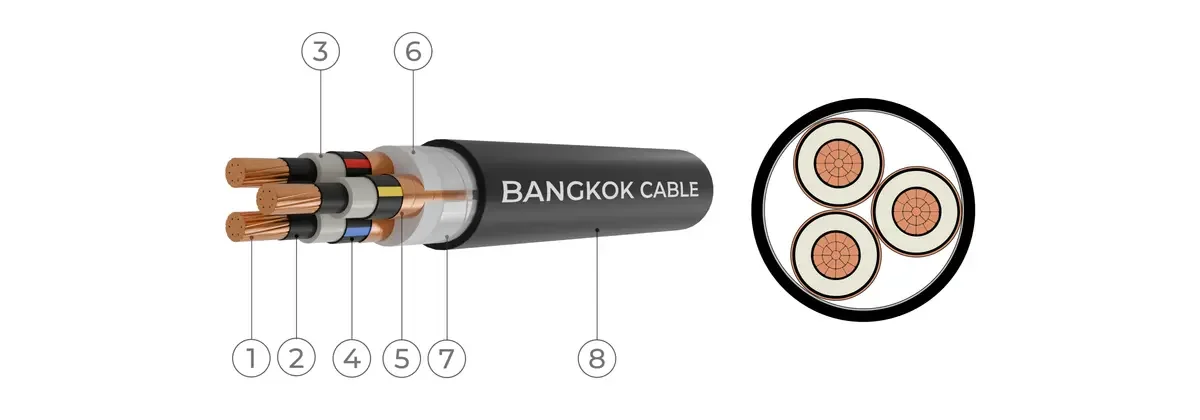

Number of Core : 1 core and 3 core
Conductor : Circular compact stranded annealed copper
Conductor Screen : Semi-conductive cross-linked polyethylene compound
Insulation : Cross-linked polyethylene (XLPE) compound
Insulation Screen : Semi-conductive cross-linked polyethylene compound
Binding tape : Polyester tape
Metallic Screen : Copper wires with copper contact tape
Shealth : Black Polyvinyl chloride (PVC), (Optional: PE)
Classification : Maximum conductor temperature 90°C
Maximum circuit voltage 7.2Kv
AC testing voltage : 12.5KV
Reference : IEC 60502-2
Application : For general purpose power distribution in dry or wet location,
Exposed in aerial, direct burial, conduit, open tray and underground duct intallation
**Prices shown are base prices. Customers can request a discount by these contact channels**
ตารางแสดงราคาตั้ง สายไฟฟ้า (Table of Price List)
| Name and Size (mm²) ชื่อและขนาด (ตร.มม.) | Number of Core จำนวนแกน | |
| 1 Core(Baht/Meter) 1 แกน(บาท/เมตร) | 3 Core(Baht/Meter) 3 แกน(บาท/เมตร) | |
| สายไฟ 3.6/6(7.2) KV-CV 10 mm2 | 222.6 | 697.20 |
| สายไฟ 3.6/6(7.2) KV-CV 16 mm2 | 277.20 | 851.20 |
| สายไฟ 3.6/6(7.2) KV-CV 25 mm2 | 343.00 | 1,072.40 |
| สายไฟ 3.6/6(7.2) KV-CV 35 mm2 | 418.60 | 1,297.80 |
| สายไฟ 3.6/6(7.2) KV-CV 50 mm2 | 511.00 | 1,618.40 |
| สายไฟ 3.6/6(7.2) KV-CV 70 mm2 | 651.00 | 2,055.20 |
| สายไฟ 3.6/6(7.2) KV-CV 95 mm2 | 827.40 | 2,622.20 |
| สายไฟ 3.6/6(7.2) KV-CV 120 mm2 | 1,005.20 | 3,186.40 |
| สายไฟ 3.6/6(7.2) KV-CV 150 mm2 | 1,212.40 | 3,759.00 |
| สายไฟ 3.6/6(7.2) KV-CV 185 mm2 | 1,479.80 | 4,505.20 |
| สายไฟ 3.6/6(7.2) KV-CV 240 mm2 | 1,902.60 | 5,765.20 |
| สายไฟ 3.6/6(7.2) KV-CV 300 mm2 | 2,340.80 | 7,084.00 |
| สายไฟ 3.6/6(7.2) KV-CV 400 mm2 | 2,935.80 | 9,052.40 |
| สายไฟ 3.6/6(7.2) KV-CV 500 mm2 | 3,714.20 | - |
Products are in the roll of 100 meters
If customers would like to order special length, please contact us by these channels
