VCT IEC53 | Thai Union
300/500V 70°C FLEXIBLE CONDUCTOR PVC INSULATED AND SHEATHED, ROUND TYPE
Type : VCT IEC53, Flexible copper conductor, PVC insulated
Brand : THAI UNION
Number of Core : Up to 4 cores
Conductor : Flexible coppper conductor, size 1.0 mm² up to 2.5 mm²
Insulation : Polyvinyl chloride (PVC/D) Colour : Natural (Translucent),
Core Identification : 2-Cores; Blue, Brown
3-Cores; Brown, Black, Grey
4-Cores; Blue, Brown, Black, Grey
Shealth : PVC / Colour : Black
Classification : Maximum conductor temperature 70°C. Circuit voltage not exceeding 300/500 Volts
Reference : TIS 11 Part 5-2553
**Prices shown are base prices. Customers can request a discount by these contact channels**

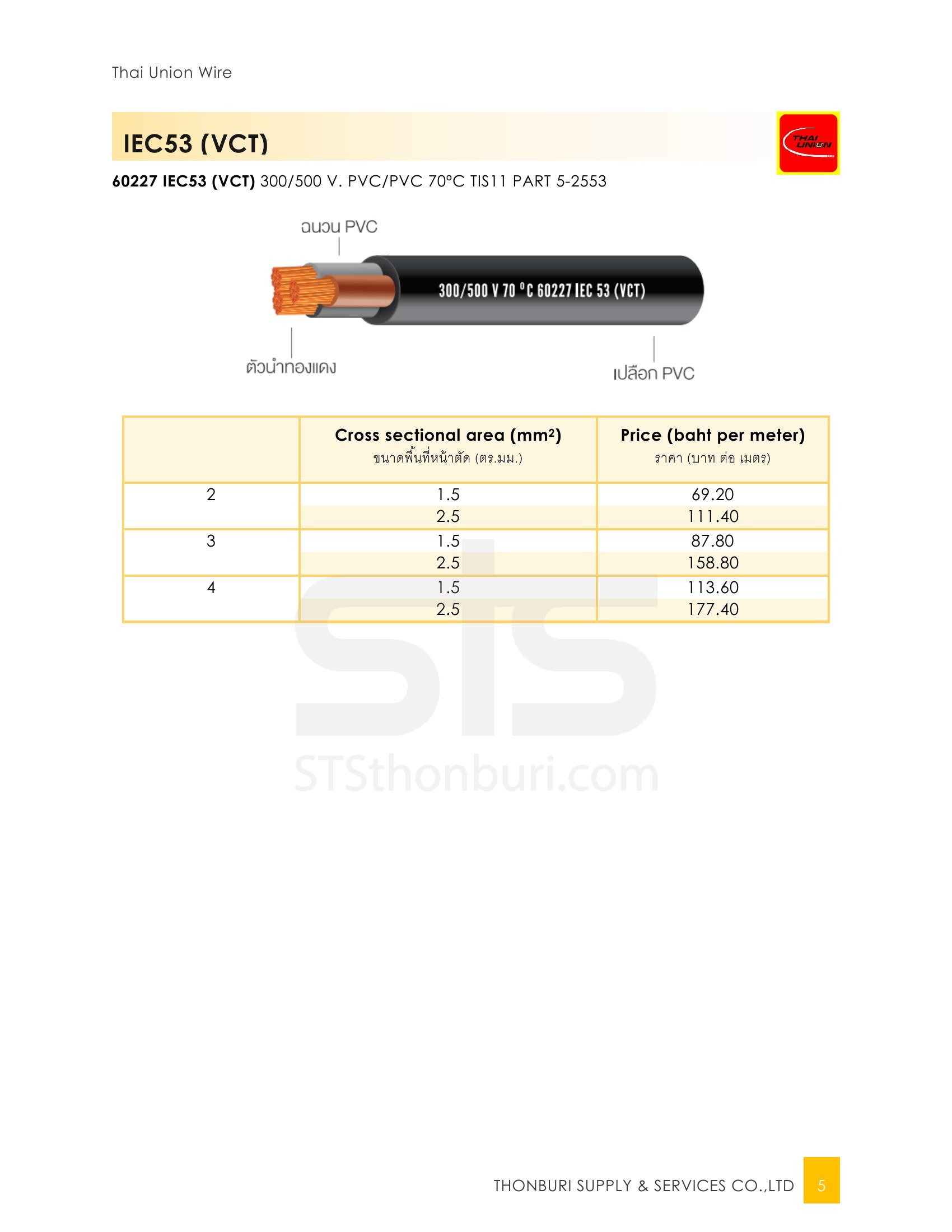

Table of Price List
| Name and Size (mm²) ชื่อและขนาด (ตร.มม.) | Number of Core จำนวนแกน | ||
| 2 Core(Baht/Meter) 2 แกน(บาท/เมตร) | 3 Core(Baht/Meter) 3 แกน(บาท/เมตร) | 4 Core(Baht/Meter) 4 แกน(บาท/เมตร) | |
| สายไฟ VCT 0.5 mm² | 12.85 | - | - |
| สายไฟ VCT 1.0 mm² | 17.00 | 23.10 | 28.90 |
| สายไฟ VCT 1.5 mm² | 22.60 | 28.70 | 37.10 |
| สายไฟ VCT 2.5 mm² | 36.40 | 51.90 | 58.00 |
Products are in the roll of 100 meters
If customers would like to order special length, please contact us by these channels
