สายไฟ ACSR | FUHRER

Attribute:

ACSR, Bare aluminium with galvanized steel

Diameter :

Categories : Brand FUHRER Products range ACSR

Brand : FUHRER

สายไฟ ACSR

ALUMINIUM CONDUCTOR STEEL REINFORCED

Type : Aluminium conductor steel reinforced
Brand : FUHRER
Conductor : Hard drawn aluminium wires, Size 16 mm² up to 550 mm²

Standing Direction : Z-Stranging
Steel Core: Galvanized steel (Zinc coated), solid and concentric straned, sizes 2.5 mm² up to 70 mm²
Reference : TIS 85-2548

**Prices shown are base prices. Customers can request a discount by these contact channels**

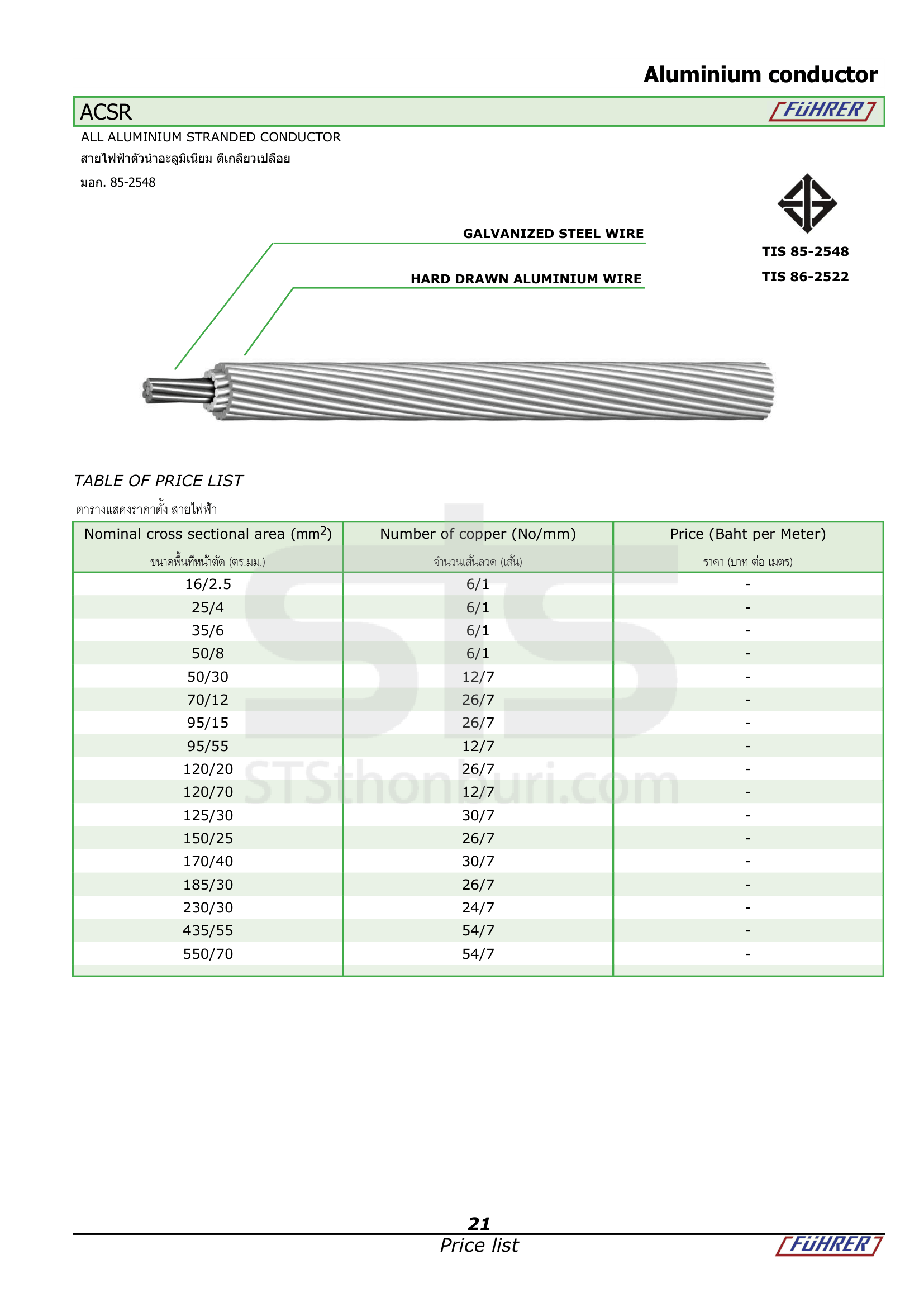

ตารางแสดงราคาตั้ง สายไฟฟ้า (Table of Price List)

Name and Size (mm²)
ชื่อและขนาด (ตร.มม.)
Number of Copper (No/mm)
 จำนวนเส้นลวด (เส้น)
Price (Baht per Meter)
ราคา (บาทต่อเมตร)
ACSR 16/2.5 mm²6/1ติดต่อฝ่ายขาย
ACSR 25/4 mm²6/1
ACSR 35/6 mm²6/1
ACSR 50/8 mm²6/1
ACSR 50/30 mm²12/7
ACSR 70/12 mm²26/7
ACSR 95/15 mm²26/7
ACSR 95/55 mm²12/7
ACSR 120/20 mm²26/7
ACSR 120/70 mm²12/7
ACSR 125/30 mm²30/7
ACSR 150/25 mm²26/7
ACSR 170/40 mm²30/7
ACSR 185/30 mm²30/7
ACSR 230/30 mm²30/7
ACSR 435/55 mm²30/7
ACSR 550/70 mm²30/7

Products are in the roll of 100 meters
If customers would like to order special length, please contact us by these channels
